I. Equipment Features The vacuum unit is composed of a series of units including anti-corrosion PP water tank, buffer tank, RPP water jet pump, check valve, steam-water jet pump, and
Zhengzhou Jinquan's cooperation company background.
Ltd. is a professional enterprise engaged in the research and development, production and recycling of precious metal catalysts; the company relies on Dalian University of Technology, Zhejiang University, Zhejiang University of Technology and other well-known institutions at home and abroad, collaborative development of palladium carbon (Pd/C), platinum carbon, (Pt/C) ruthenium carbon (Ru/C) and other series of non-homogeneous precious metal carrier class catalysts, the products have been widely used in pharmaceutical, pesticide, petrochemical The company focuses on working closely with customers, providing technical support on catalyst recycling, regeneration and recovery, so that users can significantly reduce costs; it can also provide self-service hydrogenation services for customers to optimize catalyst specifications, dosage and process conditions, and implement strict confidentiality measures for customer information.
Project name: Shaoxing Xinchang Gongsheng platinum-palladium-rhodium refining project

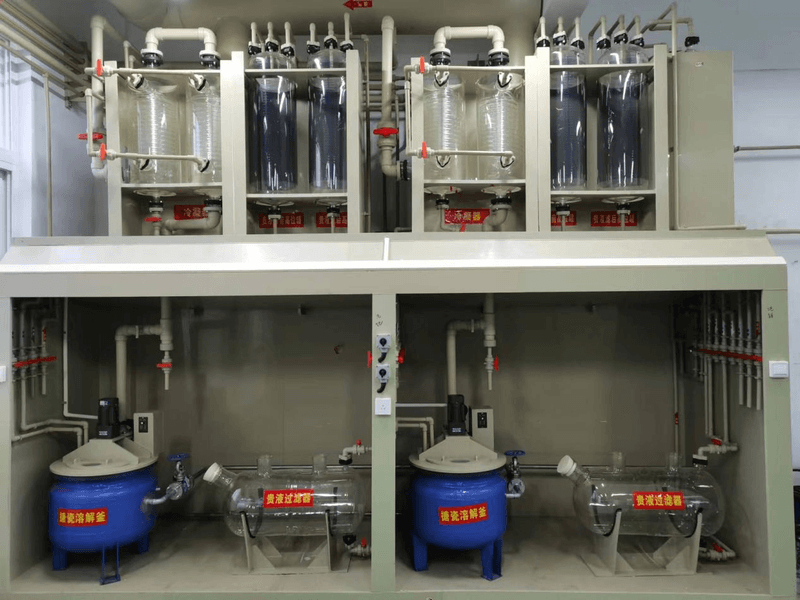

Process principle: Our company signed a contract with Xinchang Gongsheng Materials Co., Ltd. for palladium refining and waste gas treatment, each batch can refine 10-15kg of palladium, using glass reaction vessel and liquid storage tank, the whole reaction process is transparent and visible, easy to clean, no backlog, the reaction vessel and filtration device are using real air conditioning liquid, easy to operate, the reaction wind cabinet is designed with transparent sliding door, and the wind cabinet is designed with fume deflector. The waste gas produced can be completely extracted.

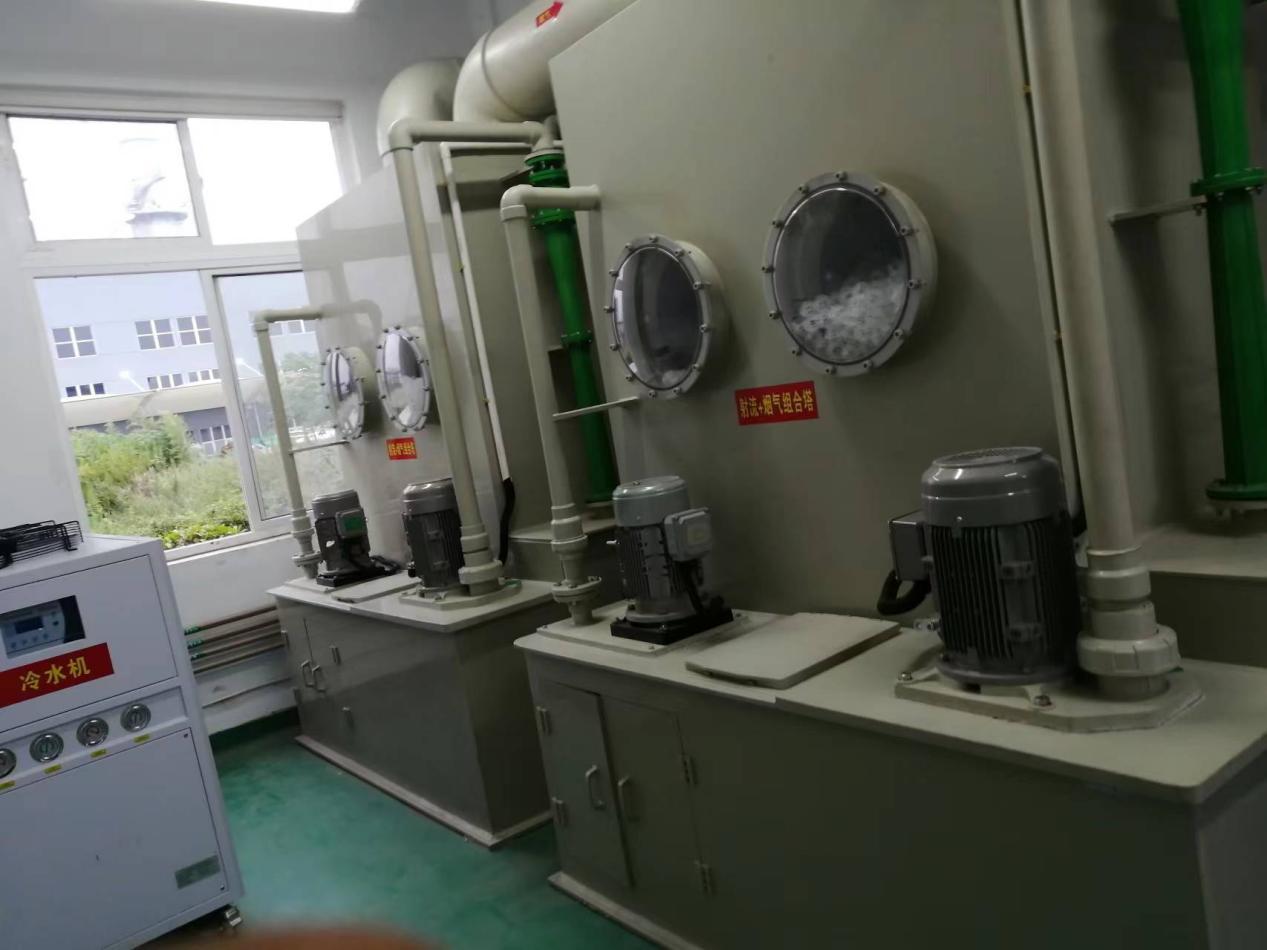

The exhaust gases to be treated are nitrogen oxide exhaust gas from palladium aqua regia dissolution and alkaline exhaust gas from palladium refining process, nitrogen oxide exhaust gas is treated by two-stage bubble absorption + four-stage jet absorption + one-stage alkaline spray, alkaline exhaust gas is treated by two-stage acid spray, raw material: platinum palladium rhodium raw material.

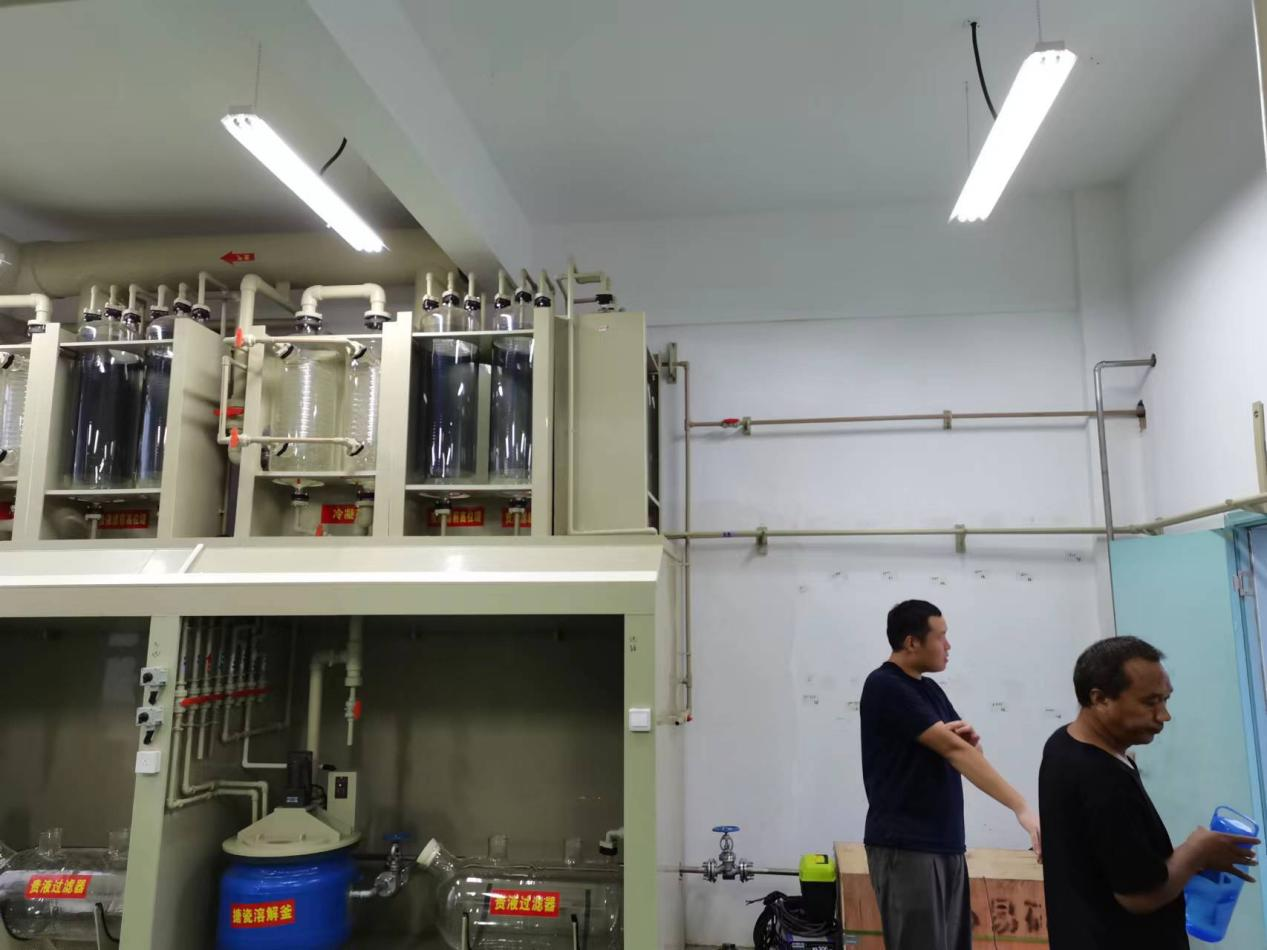

Project diagram and video show.
