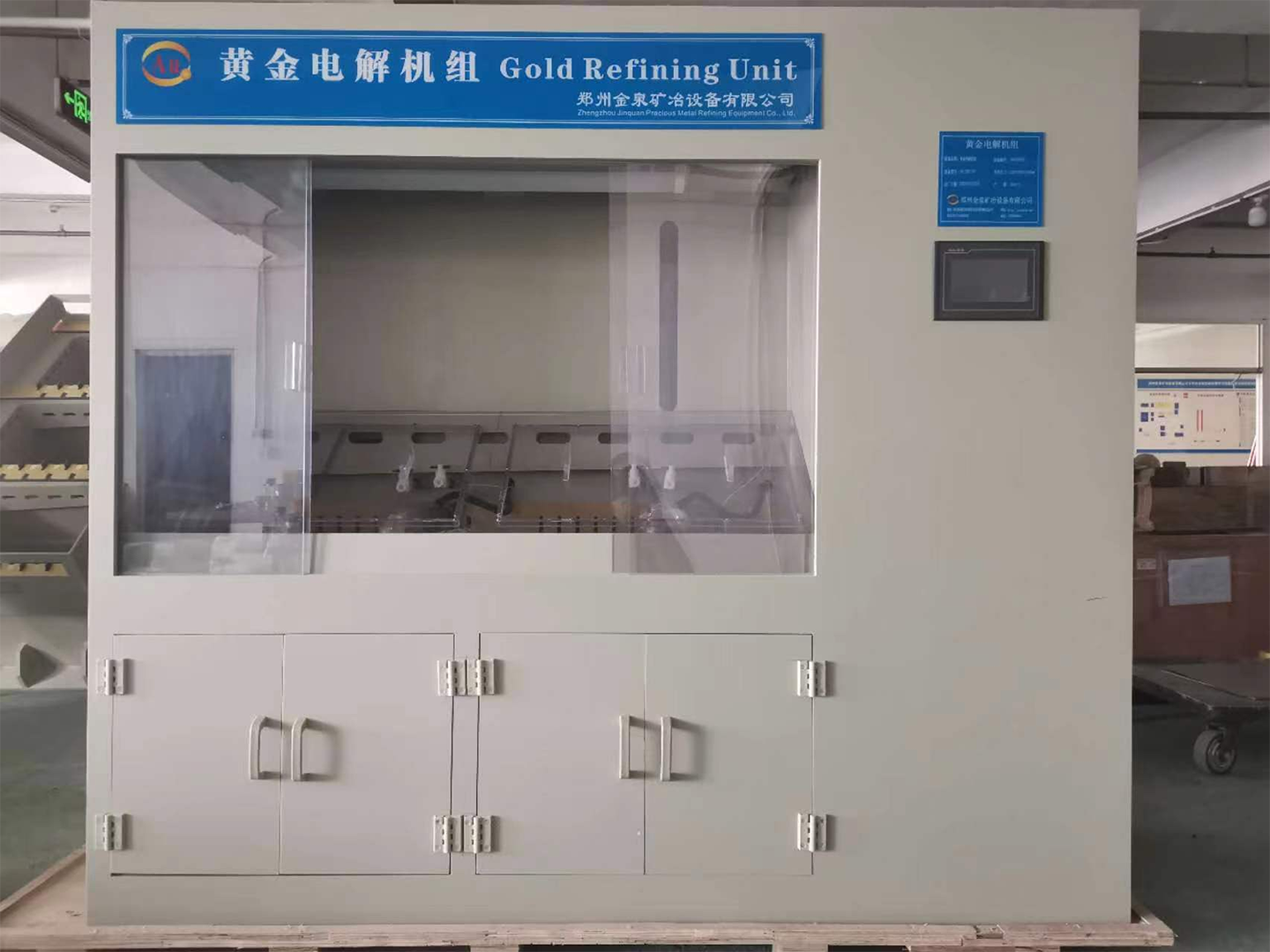

High efficiency gold electrolysis unit is a device which uses electrolysis method to purify the crude gold with more than 95% gold content to 99.99%, uses the crude gold as the anode, titanium or pure gold as the cathode, chlorogold acid solution as the electrolyte, passes the DC or AC / DC superimposed power supply, makes the crude gold dissolve in the anode
Advantages of the our efficient gold electrolytic unit:
1. The product quality is stable and can reach the gold ingot standard of au99.99 (grade I) of Shanghai Gold Exchange; according to the special needs of customers, the gold ingot with 99.999% purity can also be produced through secondary electrolysis;
2. Low production cost: about 0.02 yuan / g gold;
3. The use of AC and DC superimposed power supply can effectively inhibit the generation of silver chloride on the gold anode and make the anode plate electrolysis more thorough;
4. High current density electrolysis technology; cathode current density 1200A / m2, high production efficiency;
5. Transparent closed hood, good working environment, easy to operate, beautiful and generous, the whole set of equipment covers an area of about 4m2;
6. There is a flue gas condensing device, because the gold electrolysis process needs a high temperature (60-70 ℃), the flue gas condensing device can condense the returned volatile electrolyte to avoid the loss of gold;
7. The main material of the equipment is high performance polypropylene material, adding anti-aging agent to the material, which greatly prolongs the service life of the equipment. The whole bracket material is PPH, and the corrosion resistance is very strong; the cathode and anode conductive bar material is titanium clad copper, and the conductivity is excellent.
| No | system | Equipment name | Specification and model | texture of material | Unit | quantity |
| 1 | Gold electrolysis complete equipment gm-jdj-3 | Electrolytic cell | Non standard; Refining capacity 3kg / D | PPH | pcs | 1 |
| 2 | Magnetic pump | MP-20RM | Fluorine lining | set | 1 | |
| 3 | Conductive copper bar | Non standard; The material is No. 1 red copper, and the specific size is according to the picture. | Red copper | set | 1 | |
| 4 | Cathode and anode conductive bars | Titanium clad copper | titanium | set | 1 | |
| 5 | Electrolytic cathode | Titanium plate (pure titanium) | titanium | set | 1 | |
| 6 | High level tank | 30L | Glass | set | 1 | |
| 7 | condenser | 1.5m2 | Glass | set | 1 | |
| 8 | Titanium screws | Rectifier power supply, heating, lighting, control panel | titanium | set | 1 | |
| 9 | Electric control system | Non standard; Material PPH | combination | set | 1 | |
| 10 | Trough support | Flat die, matching for gold electrolysis | PPH | pcs | 1 | |
| 11 | Anode mould | Specification and model | High purity graphite | set | 5 |
