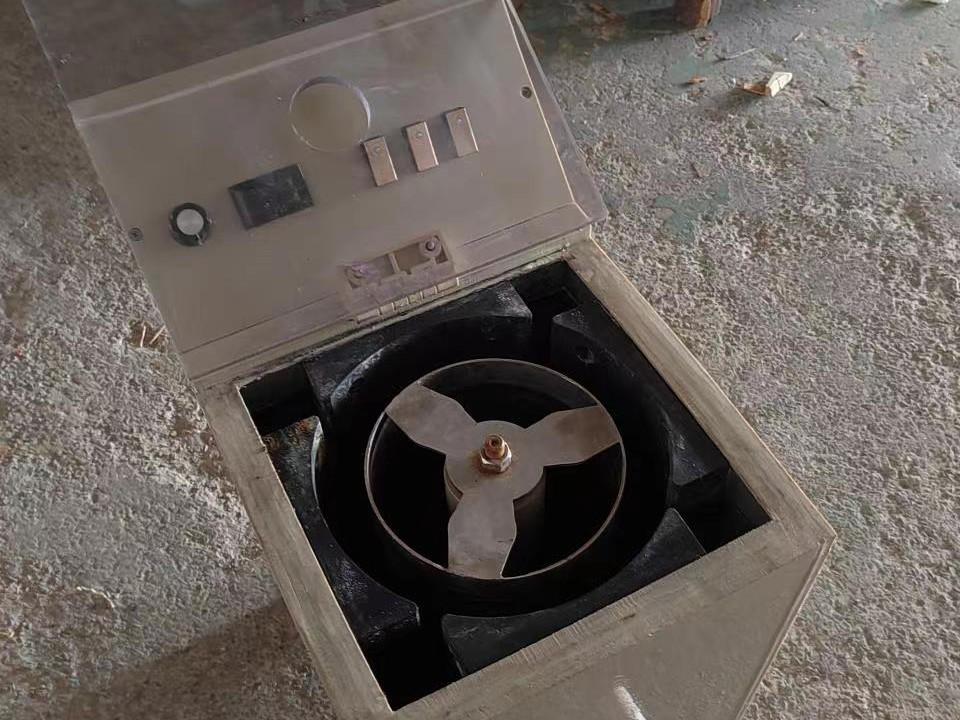

jin quan Electrowinning Tank Details

I. Introduction: The control panel of the electroaccumulation tank is Jane Ho, easy to operate and good interaction.
a. Four function keys: power key, pump key, stirring key, mode key.
b. A five-key navigation key: up/down/left/right keys to move the cursor, middle key to confirm.
c, four indicators: water pump, stirring, automatic mode, manual mode work indicator.
Second, the operating instructions.
1, on / off: granted through the power and press the power button to turn on, press the power button again to turn off. After power on, the screen displays the welcome screen, 1 second after entering the main menu.
2、Pump: The default is off after power on, and the indicator is off. In manual mode, you need to manually control its on/off. Automatic mode, the default start the pump, you can manually cast the pump key off and on at any time.
3、Stirring: default off after power on, the indicator light is off.
3、Operation guide table: operation precautions.
1、Because most of the precious liquid is corrosive, avoid the cathode barrel to be immersed in the precious liquid for a long time after the electrolysis operation is finished.
2. Before operating in automatic mode, the automatic mode should be set. There are three stages, each stage can be set with different voltage and operating time.
3、When using the stand-alone machine, try to avoid direct showering of the solution or splashing a lot on the middle column of the electrolytic tank. If it does, wipe it dry with a dry cloth immediately.
4、The fittings should be fixed and slowly screwed to the right position, not too loose or too tight. Too loose is easy to leak air, too tight is easy to screw bad fittings.
5、When the external circulation operation is carried out, the level of liquid in the electrolytic tank can be adjusted by the internal circulation valve. Generally, it should be opened between 1/2~2/3.
6、During operation, if you find that the cathode surface is blackened and not firmly adsorbed, you can reduce the voltage to avoid excessive oxidation of precious metals and shedding, which will affect the color.
7、Avoid running the pump at no load for a long time. Otherwise, it will be easily damaged by demagnetization due to overheating.
Four, electroplating tank model parameters.
