Jinquan Electrochemical Deposition Equipment

Jinquan Electrochemical Deposition Equipment

            The electrochemical deposition system has revolutionized traditional

metallurgical processes through dynamic flow field control technology and is

widely used in the fields of electronic waste recycling, electroplating wastewater

treatment and complex metal solution purification. During the deposition

process, the system drives the electrolyte to form a vortex flow field, which can

increase the deposition rate of copper/gold/silver by 40%-65% compared to a

static deposition tank, while reducing energy consumption by 30%.

Product Description

Jinquan Electrochemical Deposition Equipment

Free Contact

The company's main business: silver electrolysis unit, gold electrolysis unit, nitrogen oxide waste gas treatment system equipment, platinum, palladium and rhodium refining and purification production and other common equipment

Jinquan Electrochemical Deposition Equipment

            The electrochemical deposition system has revolutionized traditional

metallurgical processes through dynamic flow field control technology and is

widely used in the fields of electronic waste recycling, electroplating wastewater

treatment and complex metal solution purification. During the deposition

process, the system drives the electrolyte to form a vortex flow field, which can

increase the deposition rate of copper/gold/silver by 40%-65% compared to a

static deposition tank, while reducing energy consumption by 30%.

            Its core innovation lies in combining a high-speed rotating cathode (50-1500rpm)

with a flow channel design optimized by computational fluid dynamics. When

the titanium alloy cathode rotates in the electrolyte, the centrifugal force generated

increases the metal ion transmission speed by 2.3 times, effectively eliminating 78%

of the bubble retention on the electrode surface. With the precise control of voltage (±0.1V)

and temperature (80-120℃) by the PLC control system, the system can achieve a metal

recovery rate of 98.5% in electronic waste leachate and can prepare high-precision

coatings with a surface roughness of less than 0.8μm.

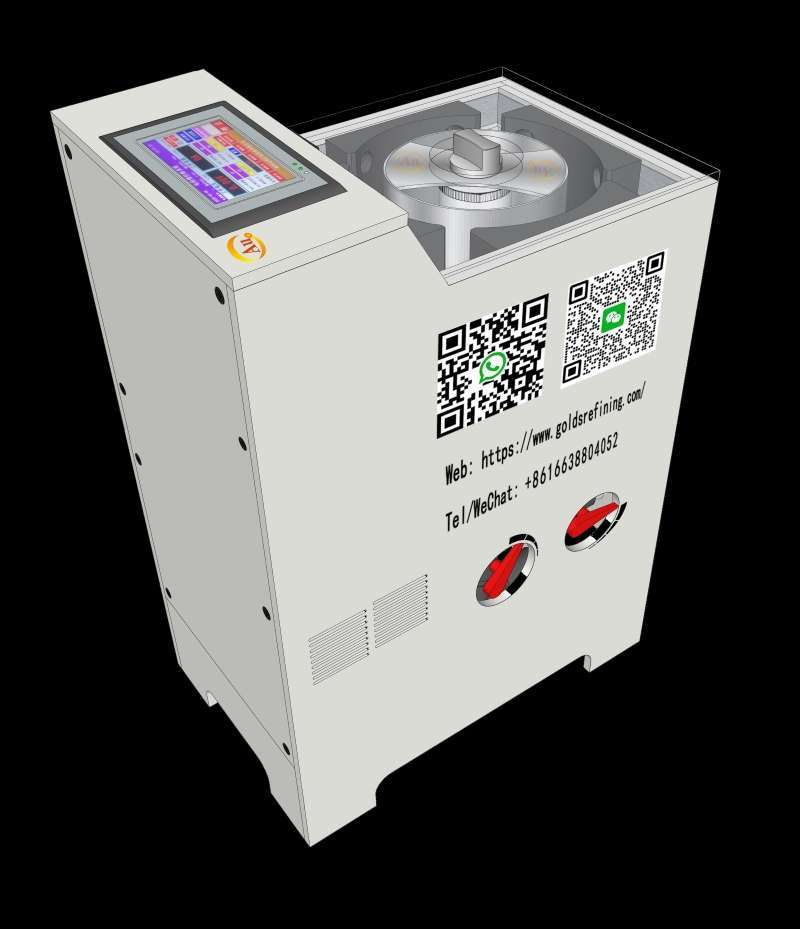

            The equipment structure adopts a modular design, including a high-torque

motor-driven rotation unit, a turbine impeller-reinforced electrolyte circulation system,

and a reaction tank cast with PPH corrosion-resistant materials. Although the initial

investment cost of the equipment is 15-20% higher than that of a traditional electrolytic

cell, the introduction of an automated control module reduces the maintenance frequency

by 40%. For projects that require processing of complex solutions containing precious

metals or preparation of precision coatings, it is recommended to achieve process

optimization by adjusting the synergistic parameters of the cathode speed (300-1200rpm)

and the electrolyte flow rate (5-20L/min).

Jinquan Electrochemical Deposition Equipment.vido
